Microwave molion sensor

  • AC microwave sensor (ceiling mount)
  • AC microwave sensor (ceiling mount)
AC microwave sensor (ceiling mount)AC microwave sensor (ceiling mount)

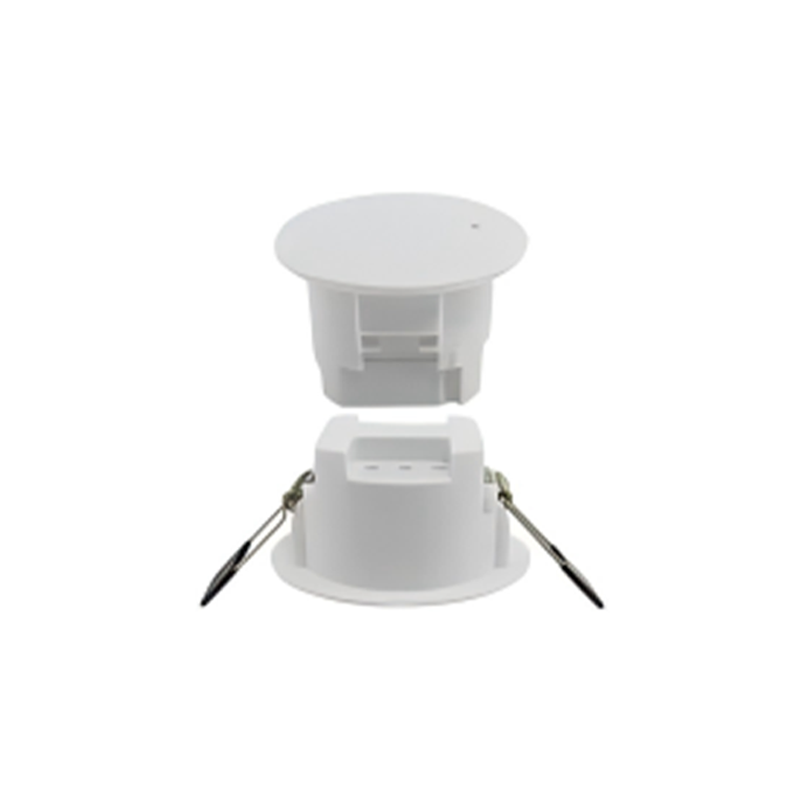

AC microwave sensor (ceiling mount)

Features:

1. Design for Led light to replace PIR sensor

2. Automatic switching based on motion and ambient light level.

3. Compact size makes it suitable to fix within most luminaires.

4. Celling mount,easy assembly

5. 5.8GHz high frequency microwave

6. Detection area, time delay and daylight threshold can be precisely set via DIP switch.

Specifications:

Model

YW105

Operating voltage

AC120-240V   50Hz/60Hz

Rated load

Inductive :800W,Resistive : 1200W

HF system

5.8GHz±75MHz / 24G

Power consumption

≤0.5W(standby)

Detection zone Max.(D x H)

2m x 10m (as request)

Detection angle

150 °(wall installation) 360 °(ceiling installation)

Hold time

30s / 90s / 3min / 20min / 30min (as request)

Detection sensitivity

25% / 50% / 75% / 100% (as request)

Motion detection

0.5~3m/s

IP rating

IP20

Operation temperature

-20~60

Life time

50,000 hours
