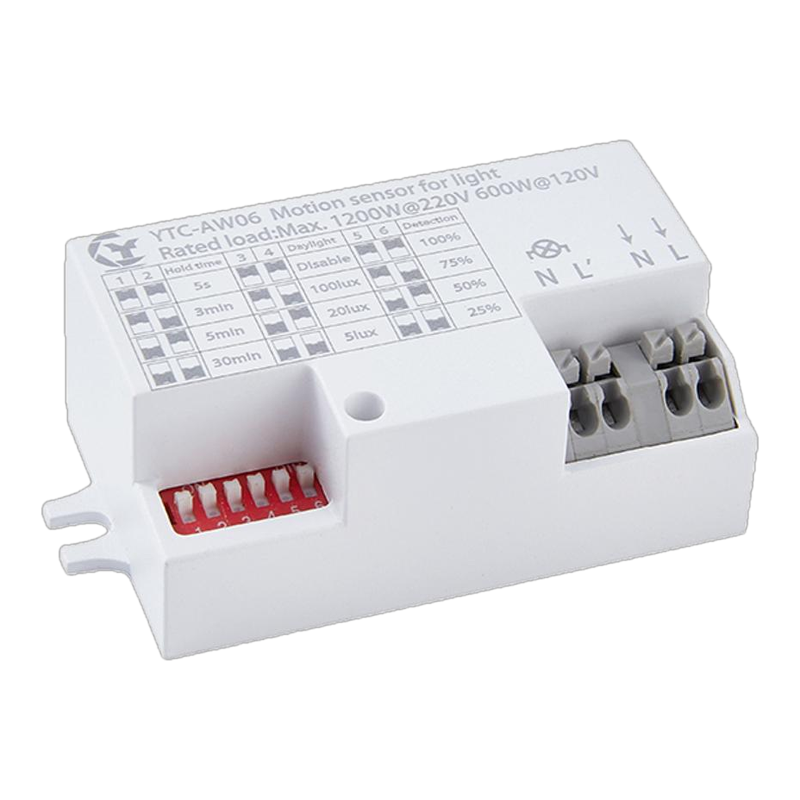

Microwave molion sensor

AC microwave sensor

Product description:
INQUIRY

Features:

1. Design for Led light to replace PIR sensor
2. Automatic switching based on motion and ambient light level.

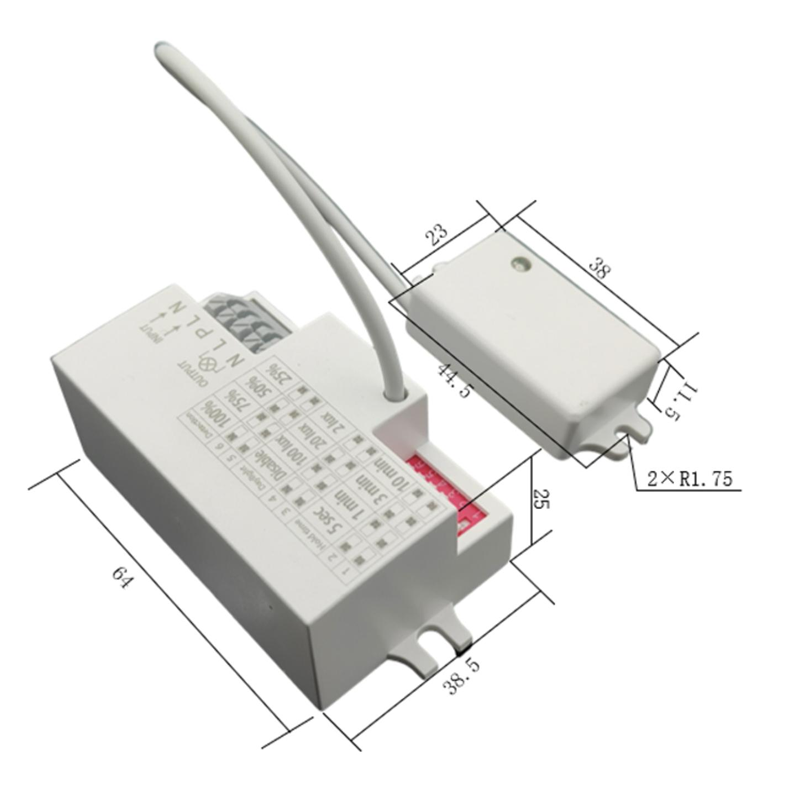

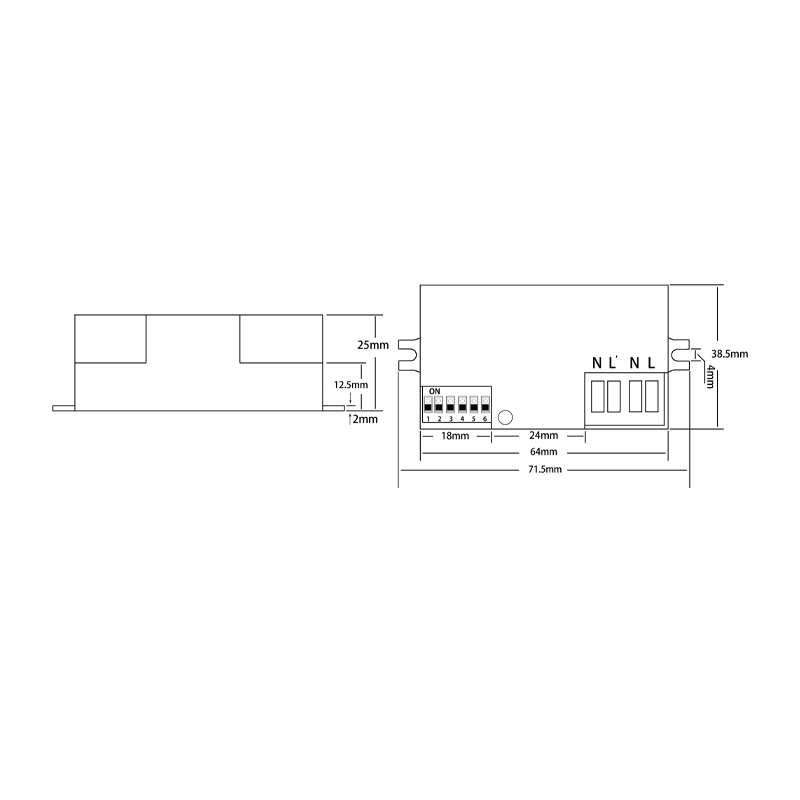

3. Compact size makes it suitable to fix within most luminaires.

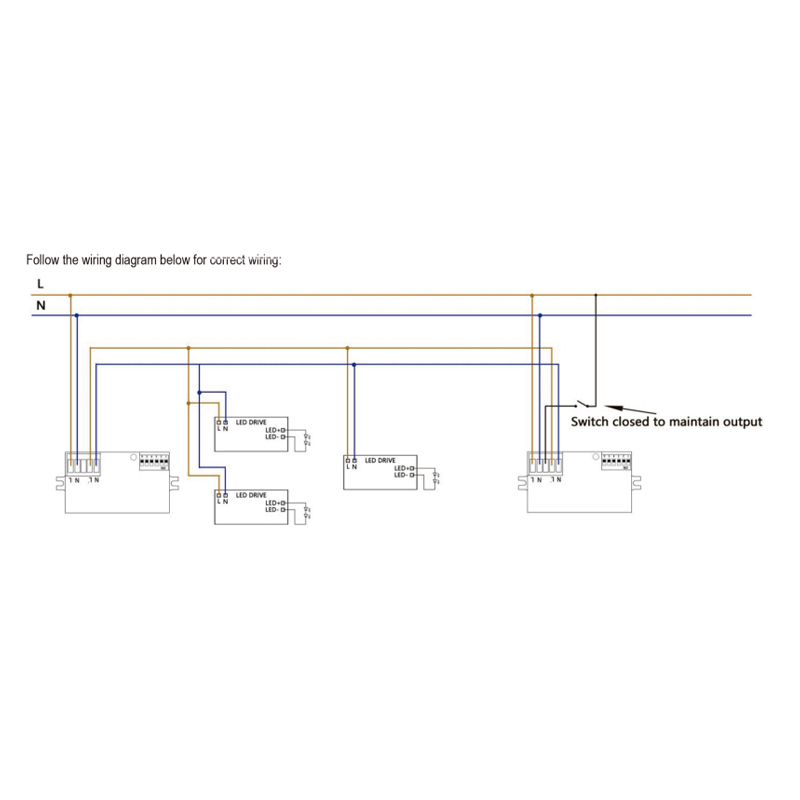

4. 4-pole press-in terminal (L, N, N,L′),easy assembly
5. 5.8GHz high frequency microwave

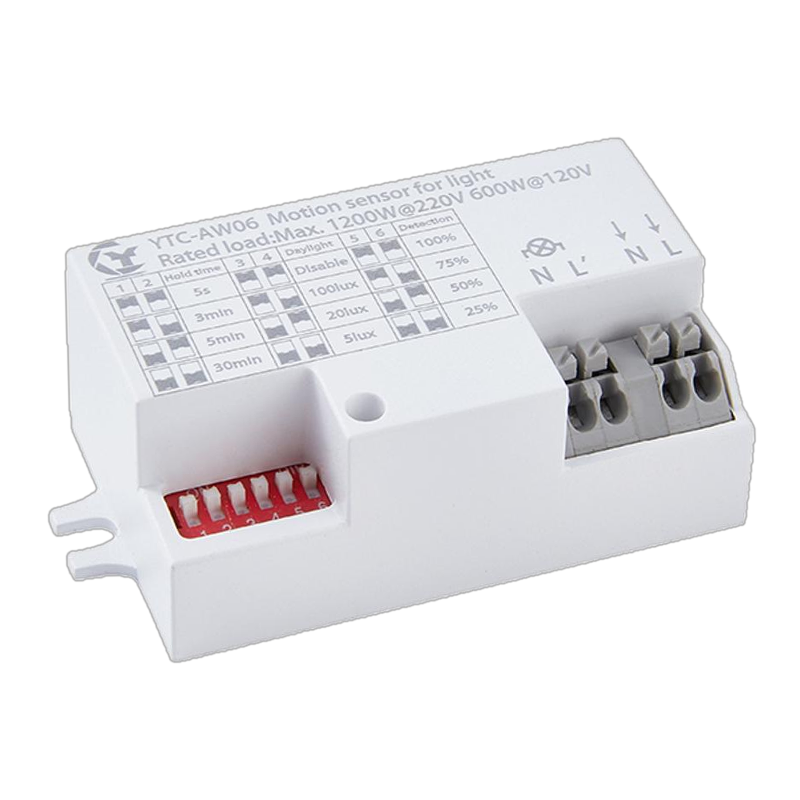

6. Detection area, time delay and daylight threshold can be precisely set via DIP switch.

Specifications:

Model	YW101
Operating voltage	AC120-347V 50Hz/60Hz
Rated load	Inductive :800W,Resistive : 1200W
HF system	5.8GHz±75MHz
Power consumption	≤0.5W(standby)

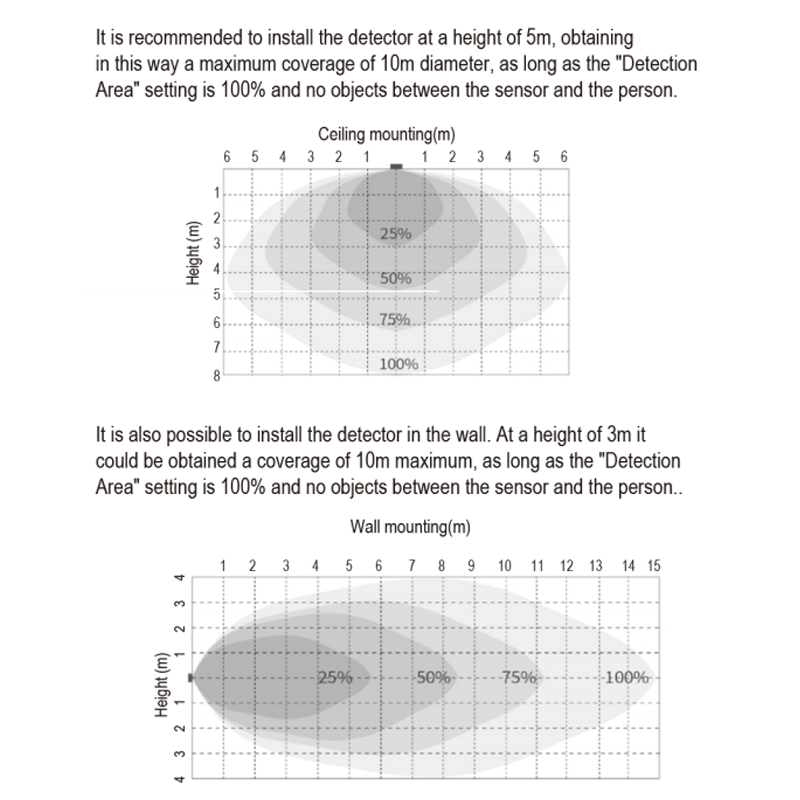

Detection zone Max.(D x H)	3m x 8m (as request)
DIM	PWM /TTL
Detection angle	150 °(wall installation) 360 °(ceiling installation)
Hold time	30s / 90s / 3min / 20min / 30min (as request)
Detection sensitivity	25% / 50% / 75% / 100% (as request)
Motion detection	0.5~3m/s
IP rating	IP20
Operation temperature	-20℃~60℃
Life time	50,000 hours
