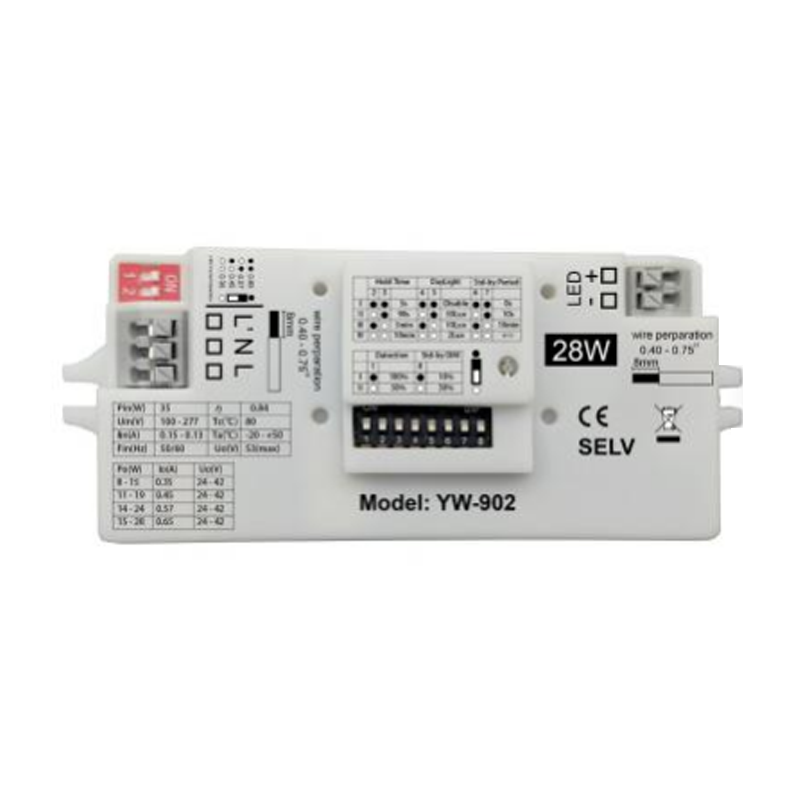

Driver with microwave motion sensor

Model

YW902P

Operating voltage

AC 120-240V

Output

DIM 0~10V

HF system

5.8GHz±75MHz,

Power consumption

≤0.5W(standby)

Detection Area

8m  (as request)

Motion detection

0.5~3m/s

DIM

10V(0s-60s ), 2V (1min-30min), 1.6V (31min- 60min) ,0V (30min+30min)

Detection angle

150 °(wall installation) 360 °(ceiling installation)

Hold time

1min  (as request)

Size

60*48*22mm (L*W*H)

IP rating

IP20

Operation temperature

-20℃~60℃

Life time

50,000 hours
